Smooth HDPE Geocell Price for Slope Stabilization Retaining Wall

GEOROAD® Geocell is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.

Key words:

Classification:

E-mail

Product Description

Commodity name: Smooth HDPE Geocell Price for Slope Stabilization Retaining Wall

Product Description

HDPE geocell is a type of geosynthetic material commonly used in road construction to improve the stability and strength of the road base. It is made from high-density polyethylene (HDPE) plastic and has a unique honeycomb-like structure that can be filled with soil, gravel, or other materials.

The main purpose of using HDPE geocell in road construction is to create a more stable and durable road base by confining the fill material within the cells. This confinement helps distribute the load more evenly across the road surface, reducing the risk of deformation and rutting.

In addition to enhancing the strength and stability of the road base, HDPE geocell also helps to promote better drainage and reduce the risk of erosion. The open structure of the geocell allows water to flow freely through the cells, preventing water buildup and prolonging the lifespan of the road.

One of the key advantages of using HDPE geocell in road construction is its ease of installation and cost-effectiveness. The lightweight and flexible nature of the geocell makes it easy to transport and install on site, saving time and labor costs compared to traditional road construction methods.

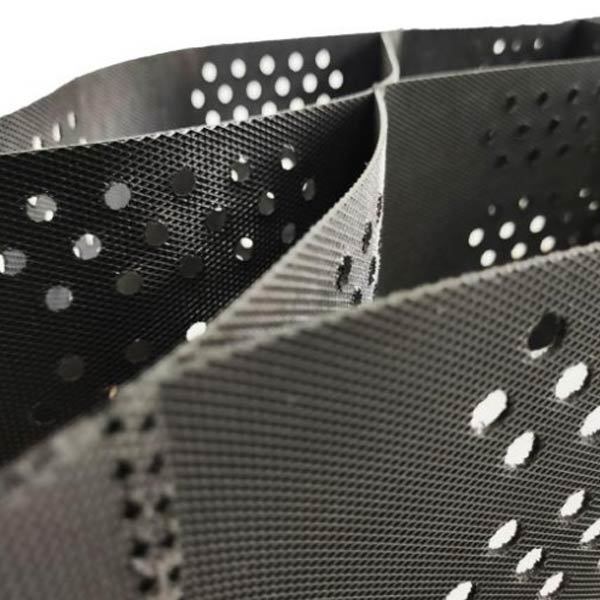

Textured & Perforated HDPE Geocell

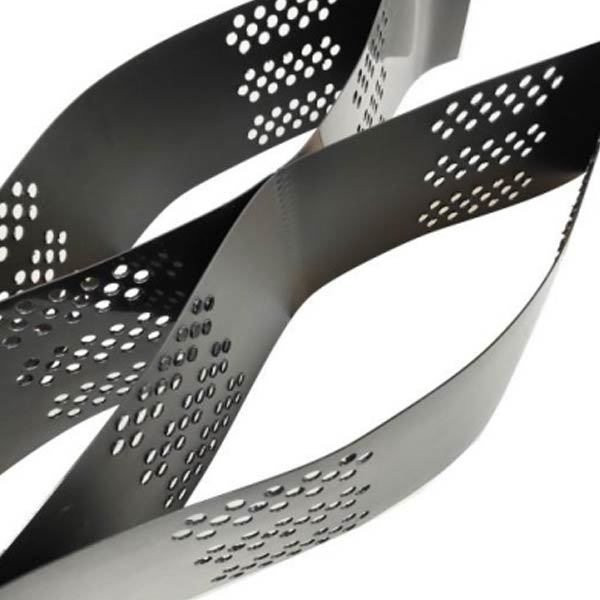

Smooth & Perforated HDPE Geocell

Textured & Non-perforated HDPE Geocell

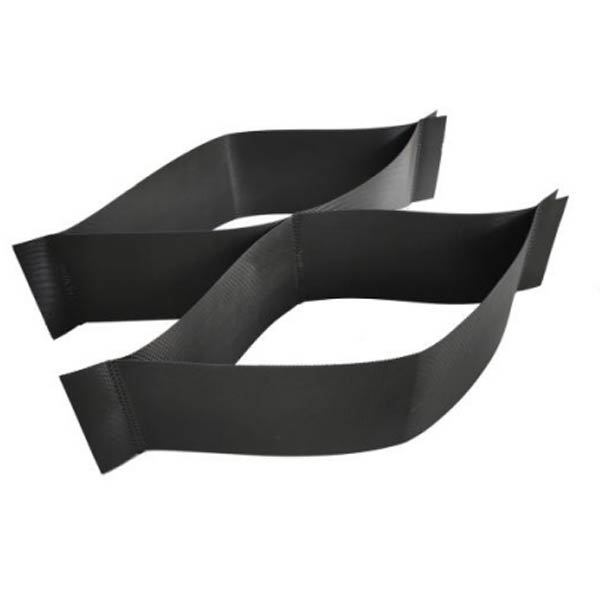

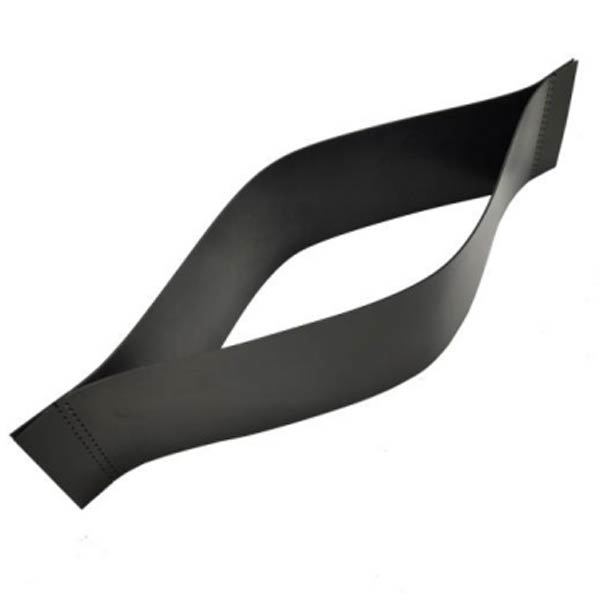

Smooth &Non-perforated HDPE Geocel

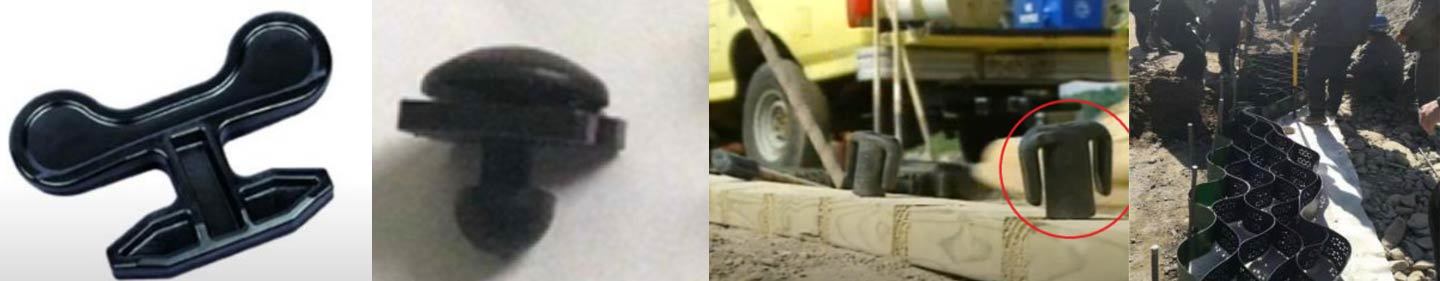

Plastic connector and hook for connecting geocell

Properties	Test Method	Unit	Value
Polymer		-	HDPE
Density	ASTM D 1505	g/cm³	0.94
Carbon black content	ASTM D 1603	%	1.5
Sheet thickness(Smooth)	ASTM D 5199	mm	1.1 or 1.2
Sheet thickness(Textured)	ASTM D 5199	mm	1.5
Seam peel strength	Cell depth
		N	75 mm	1060
		N	100 mm	1420
		N	150 mm	2130
		N	200 mm	2840
Weld spacing		mm	330	356	400	445	660	712
Expanded cell size (WxL)		mm	244X203	259X224	295X250	320X287	488X408	508X475
Expanded panel size(WxL)		m	2.44X6.15	2.56X6.52	4X5	2.56X8.35	2.44X12.29	2.56X13.72
Expanded panel area		m²	15	16.7	20	21.4	30	35.12

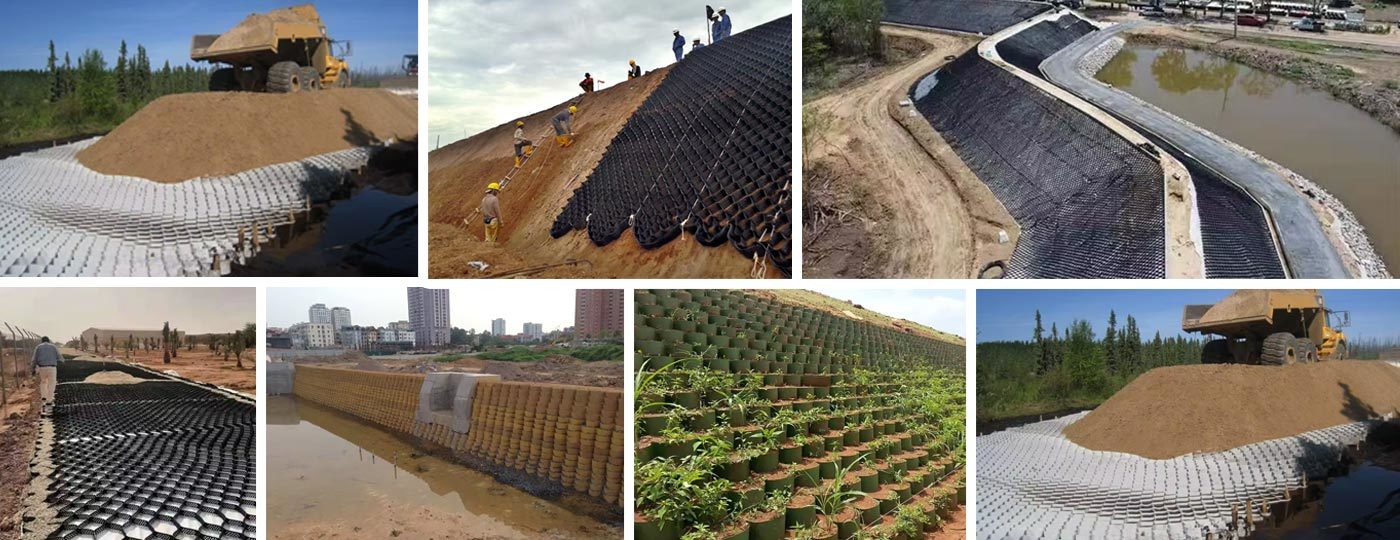

Application

Strengthening of roadbed bearing capacity: HDPE Geocell system can be used to treat damaged surfaces of highways, parking lots, and courtyards, improving the bearing capacity and load dispersion of roadbeds.
Slope protection: used to build a stable and sustainable embankment environment, prevent slope erosion, and control soil erosion.
Channel protection: Ensure the stability of channels in various corrosive environments, and improve the carrying capacity and durability of channels.
Vegetation type retaining walls: including steep slopes, gravity retaining walls, etc. HDPE Geocell can be combined with vegetation to form an eco-friendly retaining wall structure.
Soil Stability and Erosion Control: Terram HDPE Geocells are designed to improve soil stability, control erosion, and increase load support.
Cost effectiveness and sustainability: Compared with traditional construction methods, Terram HDPE Geocells is a cost-effective and sustainable solution that can significantly save costs and reduce CO2 emissions, reducing construction depth and import volume of granular fillers by about 50%.
Improving the overall stability of the roadbed: HDPE Geocell provides additional containment, allowing the use of recycled materials in the base layer, reducing average vertical stress, and improving the overall stability of the roadbed.
Structural/Flexible Pavement Construction: Studies have shown that the use of double-layer HDPE Geocell systems combined with recycled asphalt pavement (RAP) materials performs well in the flexible pavement base without significant deformation or cracking.
Environmental Protection and Sustainability: The use of HDPE Geocell allows for the use of local filling materials such as sand, reducing the import cost of traditional pavement base materials while also reducing CO2 emissions.

Packing and delivery

As a professional and experienced supplier, our products have been exported to more than 30 countries and regions, such as the United States, Canada, Mexico, Peru, Chile, Colombia, Ecuador, Bolivia, Brazil, Dominican Republic, Guyana, Israel, UAE, Egypt, Saudi Arabia, Philippines, Indonesia, Vietnam, Thailand, Malaysia, Hong Kong, India, Bangladesh, South Africa, Rwanda, Nigeria, Russia, Italy, France, UK, etc., which enables us to build a good reputation and a global distribution network.

Customer visit

We specialize in producing plastic uniaxial geogrid, biaxial geogrid, glass fiber geogrid, polyester geogrid, 3D geomat, geonet, geocell, geotextile, geomembrane, anti-spray net, safety fence. Our products are mainly used in infrastructure construction such as highway, railway, water conservancy, electricity, soil and water conservation, environmental greening, etc.

Equipment detection

GEOROAD Geosynthetics, as leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.
