Geotube for Retaining Walls and Coastal Protection

The Geotextile Tube Bag dehydration technology is an effective technology and a solution that has been proven safe for dehydratio by many research centers around the world. It is made of high-performance, special polypropylene monofilament, flat yarn or split film yarn for cloth processing and special sewing.

Key words:

Classification:

E-mail

Product Description

Commodity name: Geotube for Retaining Walls and Coastal Protection

Geotube

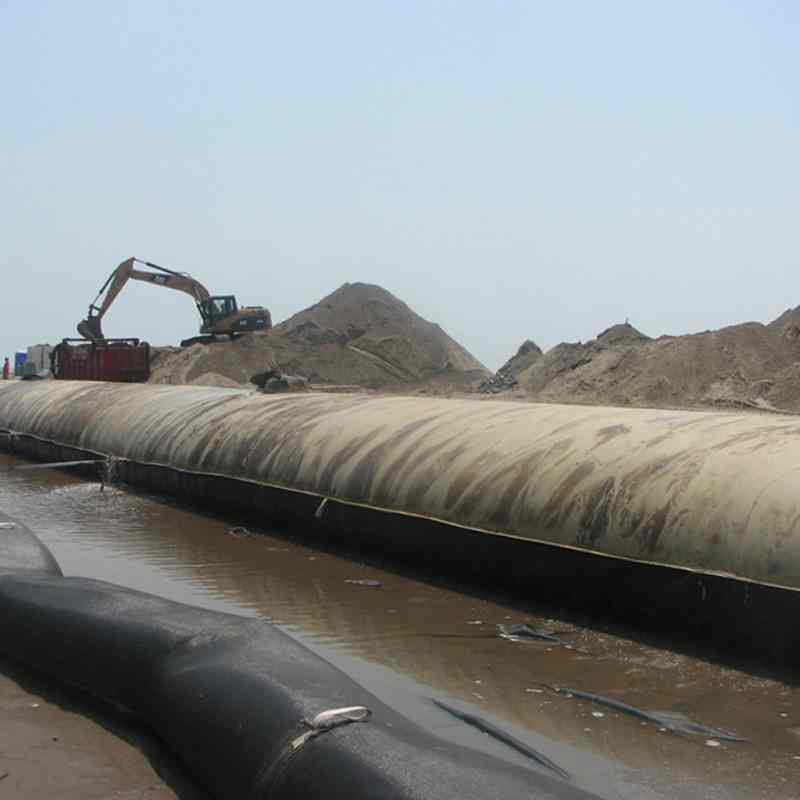

Geotube is a type of dewatering technology that is commonly used in the environmental and civil engineering industries. It consists of large, elongated tubes made of high-strength geotextile fabric that are filled with sediment, sludge, or other materials that need to be dewatered.

The process of dewatering with Geotube is simple yet effective. The material to be dewatered is pumped into the Geotube through a hose or pipeline. As the material enters the tube, the water drains out through the pores in the geotextile fabric, leaving behind a solid cake of dewatered material inside the tube.

One of the key benefits of using Geotube for dewatering is its efficiency. The large surface area of the geotextile fabric allows for rapid dewatering of the material inside the tube, reducing the time and energy required for the process.

Additionally, Geotube is a cost-effective solution for dewatering projects. Compared to traditional dewatering methods such as mechanical dewatering or drying beds, Geotube requires less equipment and manpower, resulting in lower overall costs.

Geotextile tube for Coastal protection & Dewatering

Item		Test Standard	Unit	Technical Data
Material				Polypropylene With Black or Sand Color
Spec				HT50	HT70	HT90	HT105	HT120	HT200
Tensile Strength	MD	ASTM D4595	KN/M	50	70	90	105	120	200
	CD	ASTM D4595	KN/M	50	95	120	105	120	200
Elongation	MD/CD	ASTM D4595	%	10,11,12,13,15
Opening Size O90			mm	0.05-0.90 or Customized
Length			m	20,30,50,100m
Circumference			m	5-20m

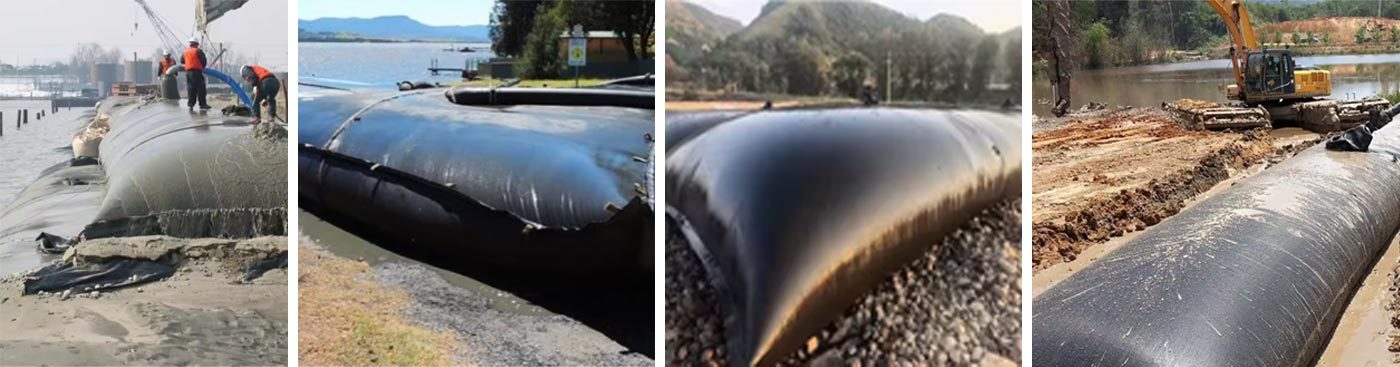

Application

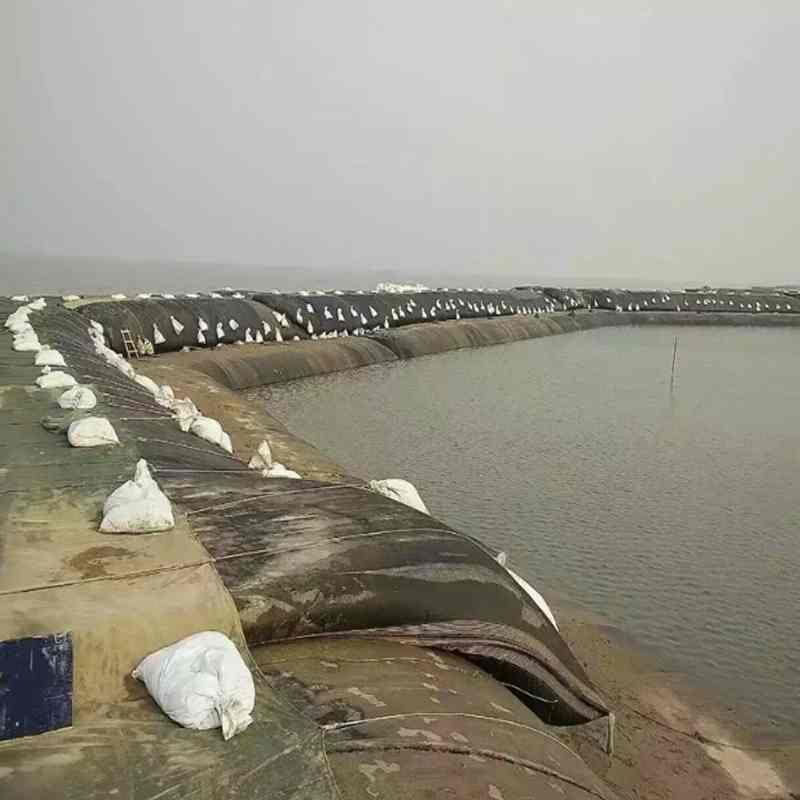

Riverbank protection: used to reinforce riverbanks, prevent erosion, and protect the soil and vegetation on both sides of rivers.

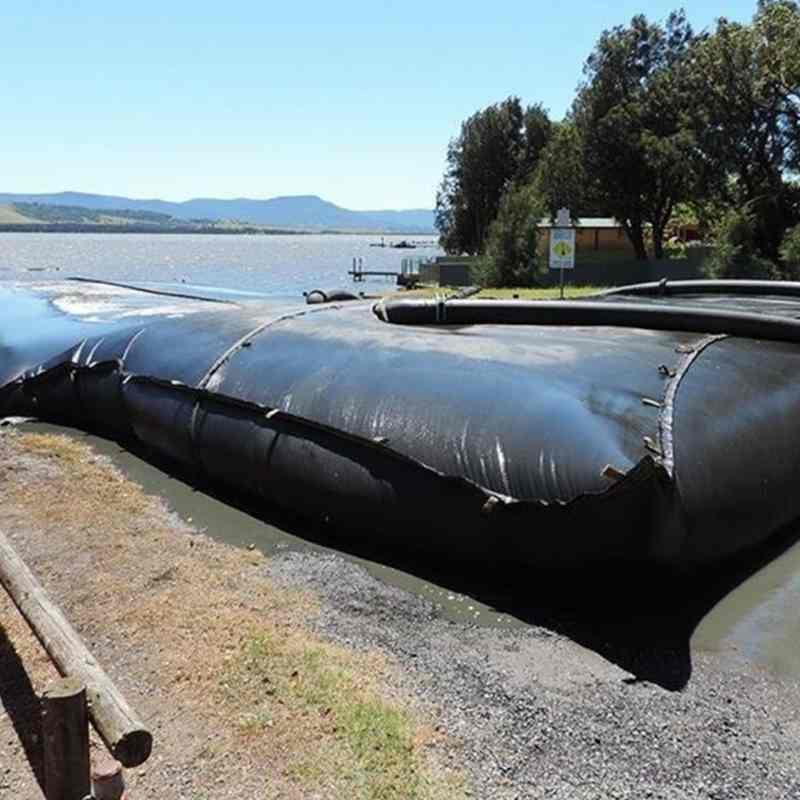

Coastal protection: Construct seawalls and breakwaters to reduce the erosion of the coastline by waves.
Reservoirs and dams: used for the construction of reservoirs and dams to improve structural stability.
Wetlands and ecological restoration: Geotubes can be used to construct wetland boundaries, control water flow, promote vegetation growth, and facilitate ecosystem restoration in wetland restoration and ecological restoration projects.
Port and dock construction: used to fill and reinforce port and dock structures, improving project stability and safety.
Tailings treatment: used for the treatment and storage of tailings to prevent tailings leakage and protect the environment.
Reservoirs and reservoirs: Geotubes can be used for anti-seepage and reinforcement in the construction and maintenance of reservoirs and reservoirs, improving their water storage capacity.
Landfill Cover: Used to cover and seal landfills to prevent leachate leakage and reduce environmental pollution.

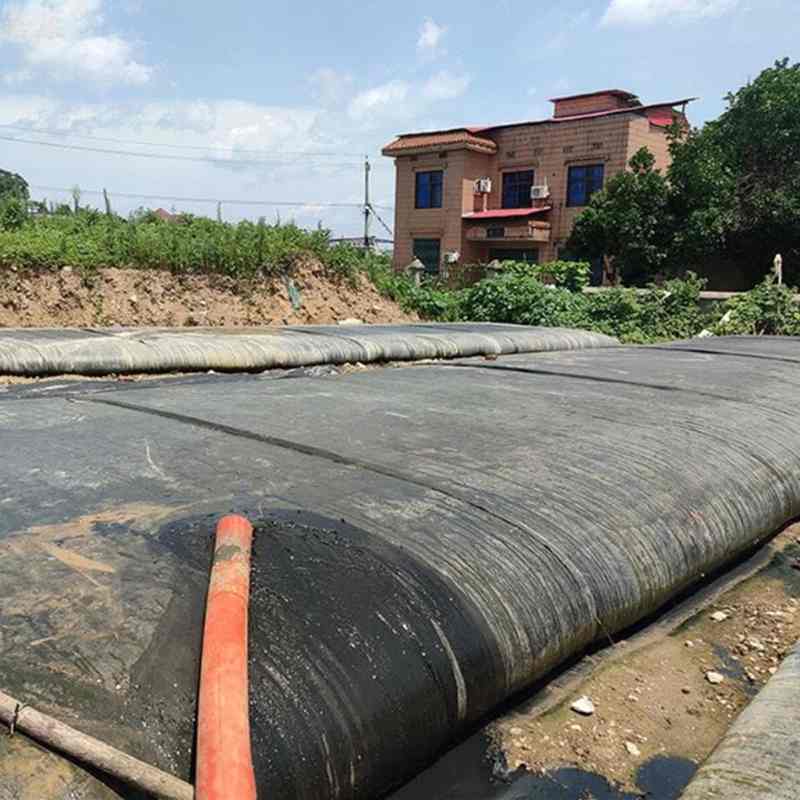

Sludge dewatering: Geotube is widely used in municipal and industrial wastewater treatment plants for sludge dewatering. Its filtering properties effectively remove water from sludge, reduce volume, and facilitate treatment and disposal.
Land reclamation: used in land reclamation projects to improve the stability and carrying capacity of land through filling and reinforcement.

Packing and delivery

As a professional and experienced supplier, our products have been exported to more than 30 countries and regions, such as the United States, Canada, Mexico, Peru, Chile, Colombia, Ecuador, Bolivia, Brazil, Dominican Republic, Guyana, Israel, UAE, Egypt, Saudi Arabia, Philippines, Indonesia, Vietnam, Thailand, Malaysia, Hong Kong, India, Bangladesh, South Africa, Rwanda, Nigeria, Russia, Italy, France, UK, etc., which enables us to build a good reputation and a global distribution network.

Customer visit

We specialize in producing plastic uniaxial geogrid, biaxial geogrid, glass fiber geogrid, polyester geogrid, 3D geomat, geonet, geocell, geotextile, geomembrane, anti-spray net, safety fence. Our products are mainly used in infrastructure construction such as highway, railway, water conservancy, electricity, soil and water conservation, environmental greening, etc.

Equipment detection

GEOROAD Geosynthetics, as leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.
